Horizontal grinder/Chipper

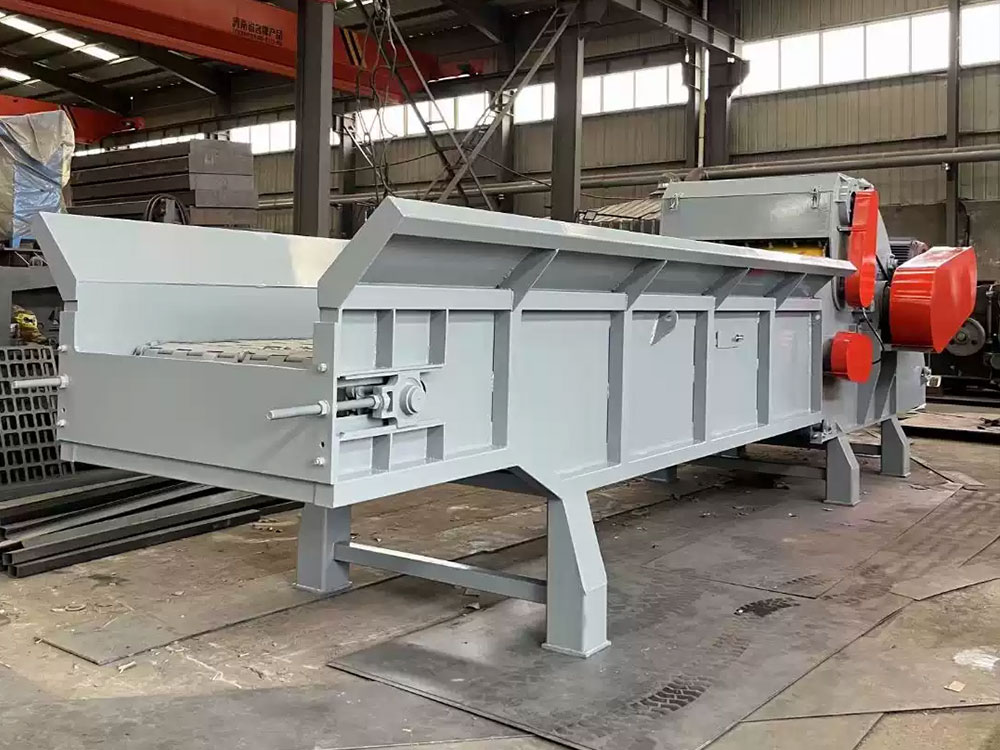

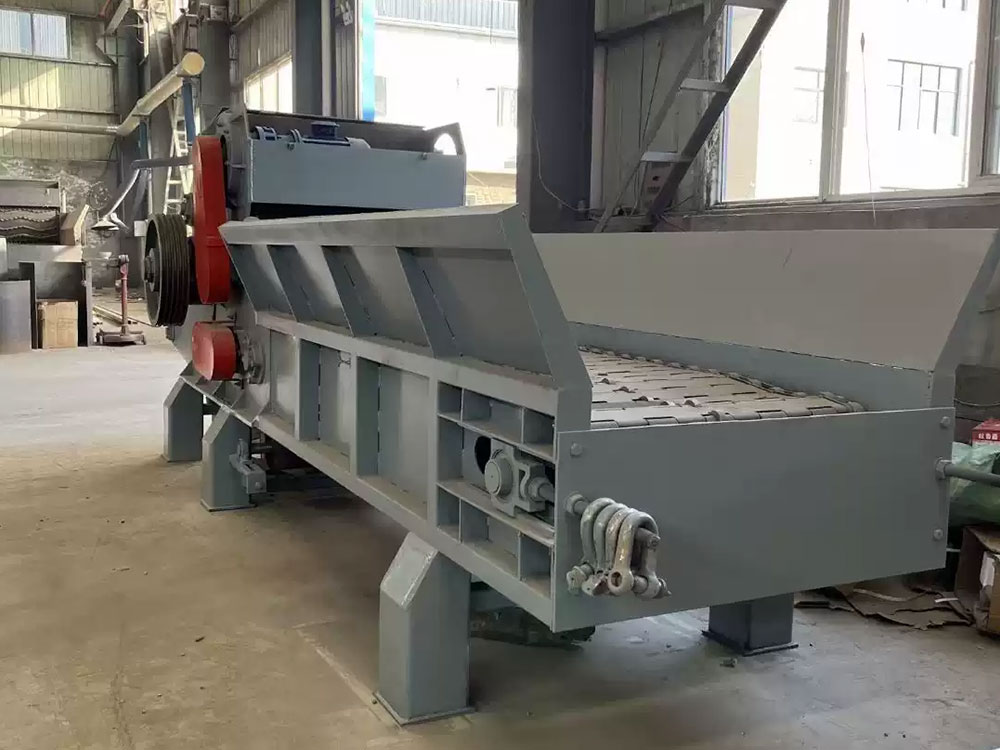

The industrial wood pallet shredder is the large-scale waste wood processing and crushing equipment. It is usually called the comprehensive crushers. This wood pallet shredder machine can smash all kinds of wooden raw materials, such as logs, tree branches, building templates with nails, wooden pallets, waste wooden furniture, waste wooden doors and windows, etc. This industrial wood pallets shredder has two drive modes, electricity-driven, and diesel-driven. The processing efficiency of this comprehensive crusher is very high, and the processing capacity per hour is between 2t and 30t. It is often used in various recycling stations, wood processing plants, and power plants.
CATEGORY: Wood chipper
DESCRIPTION
Wood composite crusher is mainly used for building template, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straws and so on.
- Including Host, chain plate, feeding and outlet system, intelligent electrical control.

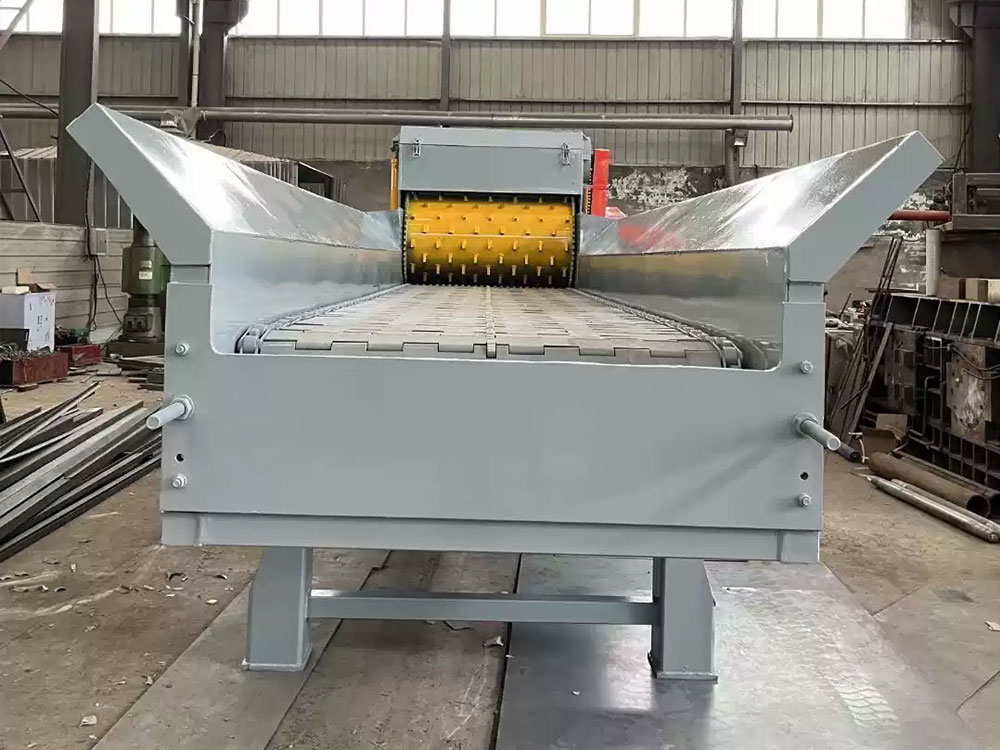

- Chain Plate Feeding conveyor feeding more freely, no need change the belt all the time.
- Reasonable structure, simple operation, high automatic level, high safety coefficient and production capacity, less manpower, easy maintenance.
- It is the ideal equipment for biomass power generation enterprises.

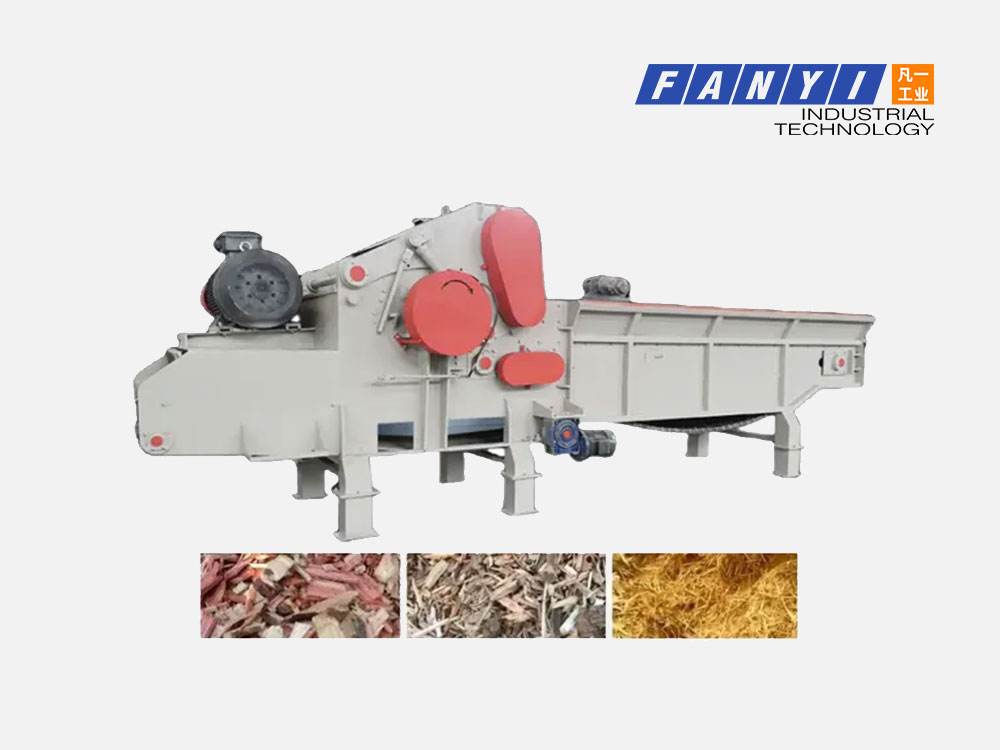

Wood Chipper Crusher Shredder
| Model | SH800-500 | SH1300-600 | SH1400-600 | SH1600-600 |
| Feeding Inlet | 800*500mm | 1250*600mm | 1400*600mm | 1600*600mm |
| Blade Roller Diameter | 850MM | |||
| Blade Roller Speed | 850rpm | |||
| Production Capacity | 8-10T/H | 12-15T/H | 18-20T/H | 25-30T/H |
| YG8 Hammer BladeQuantity | 16 | 20 | 24 | 28 |
| Knife BladeQuantity | 4Pcs | |||
| Max.ProcessingDiameter | 300MM | 450MM | 450MM | 450MM |
| Motor Power | 110KW | 160KW | 200KW | 250KW |
| Wood Chipper Size | 20-40CM | 20-40CM | 20-40CM | 20-40MM |
| Working Life of theHammer Blades | 4000T-5000T | 4000T-6000T | 4000T-6000T | 4000T-6000T |
Note: 1. This parameter table is the parameter of a common electric wooden pallet crusher. Our factory can also provide integrated crushers driven by diesel engines, and can customize suitable crushers for customers according to customer needs.
2. The technical parameters above are not binding, we reserve the right to adjust according to the actual need.
Working principle of comprehensive crusher
The wooden pallet comprehensive crusher equipment usually uses a grab machine to replace manual feeding. The crusher can pulverize various waste templates, straws, branches, etc. into biomass fuel for power plants. The feed port of the comprehensive crusher can usually be connected with an automatic conveyor, and the feeder can be used for feeding (saving labor), and it can also be operated by remote control according to requirements, or with automatic feed start and stop function. When the load of the main motor is too large, the feeding of the machine can automatically start and stop, which can greatly save labor and ensure the safety of the production process.
