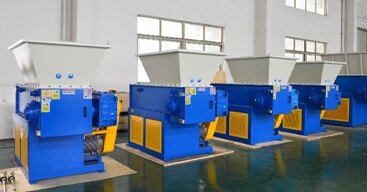

Single Shaft Shredder
There are different types of single shaft shredders on the market, including rotary shredders, granulator shredders, and single shaft industrial shredders.
- Uses: They can process a variety of materials, including plastics, wood, metal scraps, tires, and hazardous waste.
- Features: Single shaft shredders mainly include powerful motors, high-quality shredding blades, shredding chambers designed to accommodate different materials, and safety features.
- Benefits: Single shaft shredders have a variety of advantages such as efficient processing of a variety of materials, flexibility in handling different types of materials, and environmental benefits through easier recycling and waste management.
TAGS: Shredder
DESCRIPTION

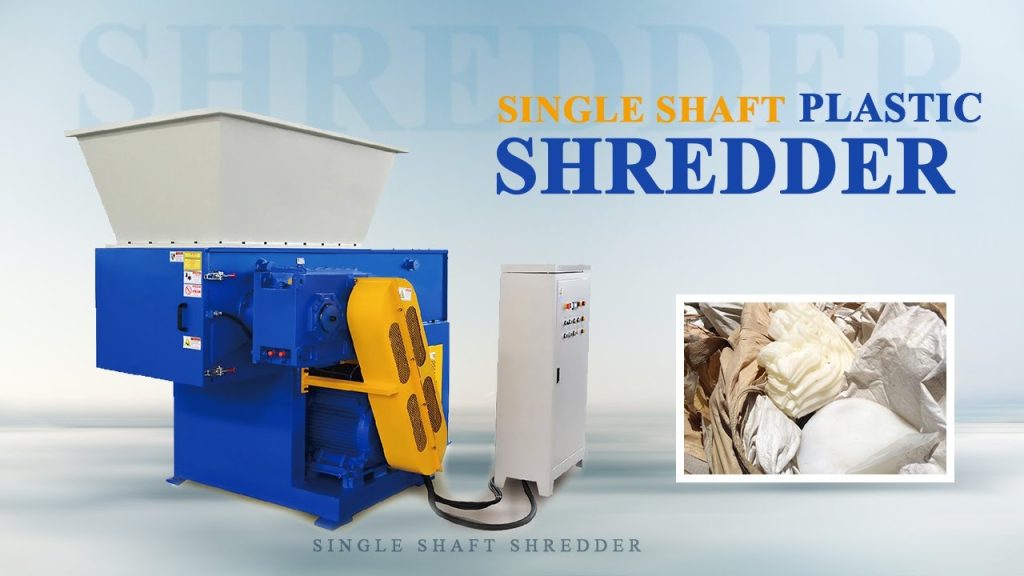

The single shaft plastic shredder machine is mainly used in handling PE PP PVC ABS lumps, pipe, baled film, etc.
This single shaft plastic shredder machine is new designed especially for shredding various big solid materials, unmanageable materials, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.
This plastic shredder machine has the advantages of stable running lower noise and big torque…
The materials are pushed into the shredding chamber by hydraulic. Independent drive system and solid structure make the running stably.
Typical applications include
- Plastic – injection moulds, trim/scrap, profiles, films, etc.
- Lumber/timber: pallets, carpentry waste, green waste, etc.
- Paper and cardboard: confidential documents, production waste, packaging materials, etc.
- Copper – household, automotive, telecommunications and industrial cables, including SWA.
- Aluminum: used beverage cans (UBC), sawdust, cables, etc.
- Textiles: carpets, clothing, etc.
- Destruction of counterfeit products, defective and expired goods, etc.
- Foam plastic: production waste, insulating materials, fillers for products, etc.
Shredder Features
- Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material
- PLC control system with automatic overload protection and auto reverse switch
- Unique hydraulic pushing system accelerates the shredding speed, for light material particularly
- Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree
- Each fixed blades has four cutting edges which enable reutilization after being abraded, by rotating 180 degree
- Quiet operation at low speed
- Screen perforation is adjustable according to customers’ requirement
- The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.
Product Parameters
| Model | 600 | 800 | 1000 | 1200 | 1500 |
| Shaft Length (mm) | 600 | 800 | 1000 | 1200 | 1500 |
| Shaft Diameter (mm) | 220 | 400 | 400 | 400 | 400 |
| Main Motor (KW) | 18.5 | 37 | 45 / 55 | 55/75 | 75/90 |
| Hydraulic Power (KW) | 2.2 | 2.2 | 2.2 | 5.5 | 5.5 |
| Rotary Blades (PC) | 26 | 46 | 58 | 70 | 90 |
| Fixed Blades (PC) | 2 | 2 | 2 | 3 | 3 |
| Capacity (kg/h) | 200-300 | 400-600 | 700-1000 | 900-1200 | 1300-1600 |
* The specifications are approximate and will vary depending on the options selected.
* Can be customized according to customer needs.
Machine Features
Single-shaft shredders excel at fine shredding and are ideal for recycling and producing alternative fuels.

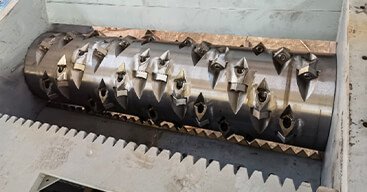

Rotary shaftThe rotary shaft made by high quality carbon steel, anti-worn.

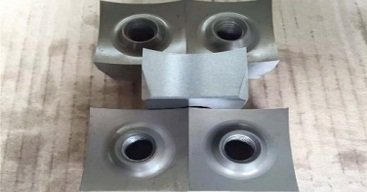

Rotor blade The rotor blade made by D2, fixed on the blades holder by screw easy to remove and maintenance, blade can use 4 times when the blade worn after using long time.

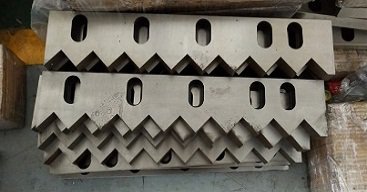

Fixed BladeThe fixed blades are movables to adjust and longer time use . Using D2 material, USA Standard, HRC 58-59 more better than SKD-II, We also can use DC53 material.

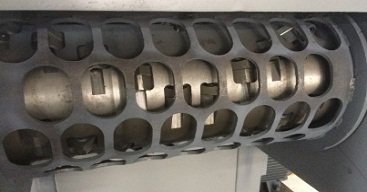

ScreenThe screen use 10mm thickness carbon steel made, with 40-100mm screen, the flakes will easy shredding and down.

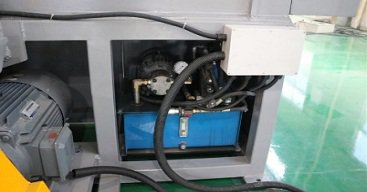

Hydraulic pump stationOil cylinder effective working. Pushing speed is adjusted by manual.

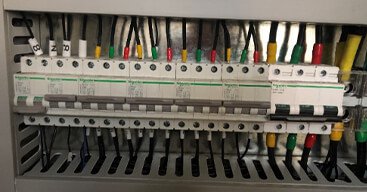

Contactors Use Schneider brand in our control system.

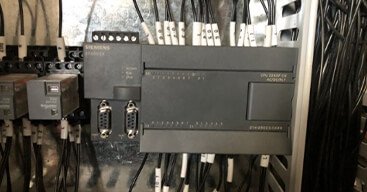

The shredder is controlled by PLC, which can automatically control the forward and reverse rotation of the rotor shaft.
