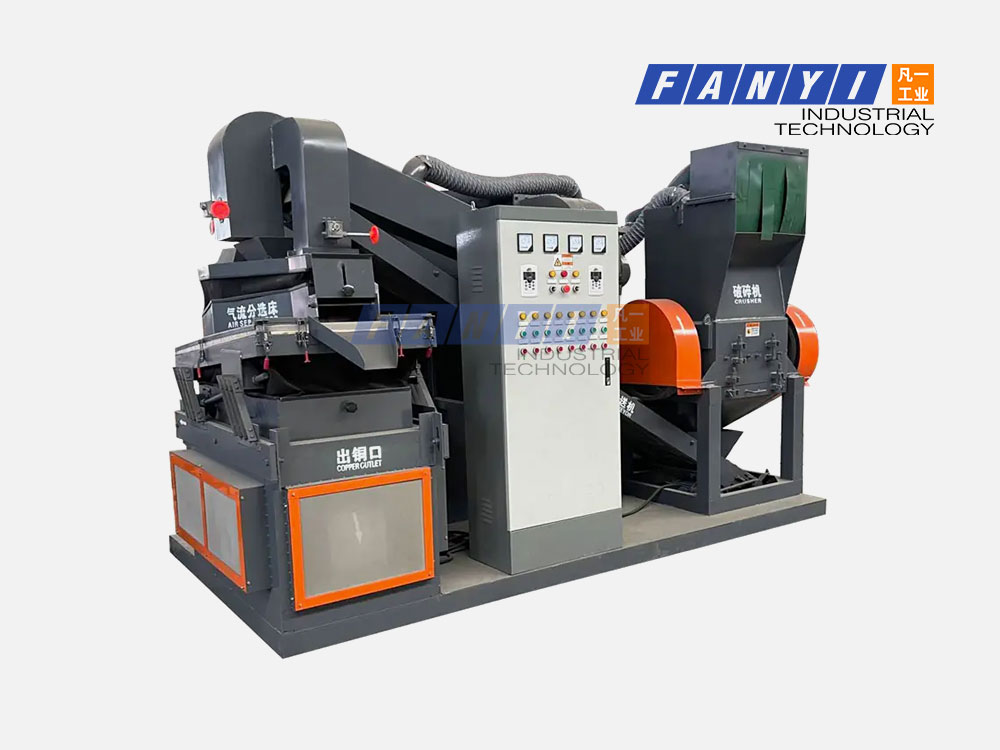

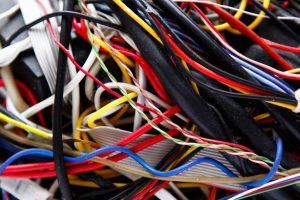

The Copper Wire Recycling Machine is mainly used to recycle all kinds of waste cable wires, the raw materials will be separated into copper and PVC, the applicable range of the wires diameter from 0.3mm to 20mm, such as automobile electrical wires, car bottom wires, motorcycle electric wires, computer copper wires and communication cable, etc.

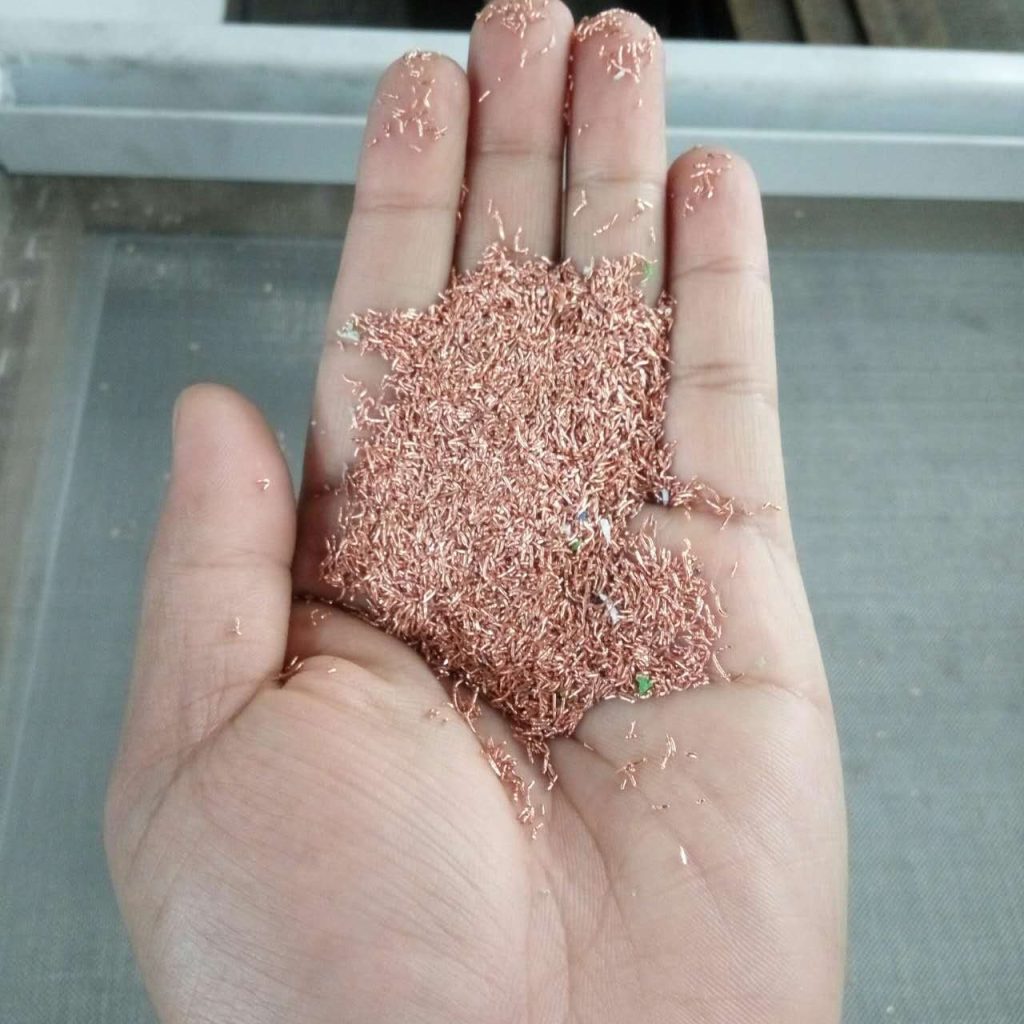

Copper Wire Recycling Machine process the waste electric wire and cable into copper and plastic granules. Copper is separated from the plastic, separation efficiency can be 99%. For the copper granule, it can be sold directly or go to further refining. Through our copper electrolysis machine, the copper can be refined into cathode copper in above 99.99% purity. The plastic granules normally are PVC or rubber material, it can also be sold directly.

Advantages

1. The whole production line is highly automated and easy to operate. (manual or automatic);
2. 99% recovery in the selection process;
3. The dry grinding machine can produce 99% pure copper;
4. The life of the machine is semi-permanent and only consumable accessories need to be replaced;
5. The machine is inexpensive and performs well (it can separate even the thinnest wires);
6. Easy operation and maintenance, Save labor, only need 1-2.workers to operate;
7. Turnkey and compact-type, PLC controllers available;
8. Applications: Communication cables, household wire, telephone wire, computer wire, fiber optic wire, e-waste wires, automotive wire all wires 0.1-30mm;

Processing of the machine

• The shredder machine could destroy the scrap cable into small pieces 5-10cm.
• The conveyor belt is used for feeding, and the cable cut by the shredder is fed into the crusher.
• The crusher machine could destroy the cable pieces into more small pieces of any sizes appointed,2-4mm.
• After crushing, the sheath and core can be separated and gathered at different areas of the screen mesh surface. With airflow function and screen box straight shock excitation, the sheath and core will be separated, and get copper particles and plastic.

Product Parameters

Model	Input size (mm)	Capacity (kg/h)	Power (kW)	Dimensions (mm)	Weight (kg)
400	0.5-20	300-400	15	1800*1300*1700	2850
600	0.5-20	500-600	37	2800*1800*2100	4200
800	0.5-20	700-800	45	2800*2000*2100	6500
1000	0.5-20	800-1000	55	2800*2500*2100	7800

Note: 1. All the equipment is suitable for wire dia within 80mm, and when the dia beyond 80mm, the peeling machine is needed.
2. Capacity May Vary with Different Materials and Feed Sizes.
3. The technical parameters above are not binding, we reserve the right to adjust according to the actual need.

Machine Details:

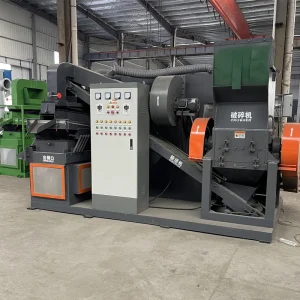

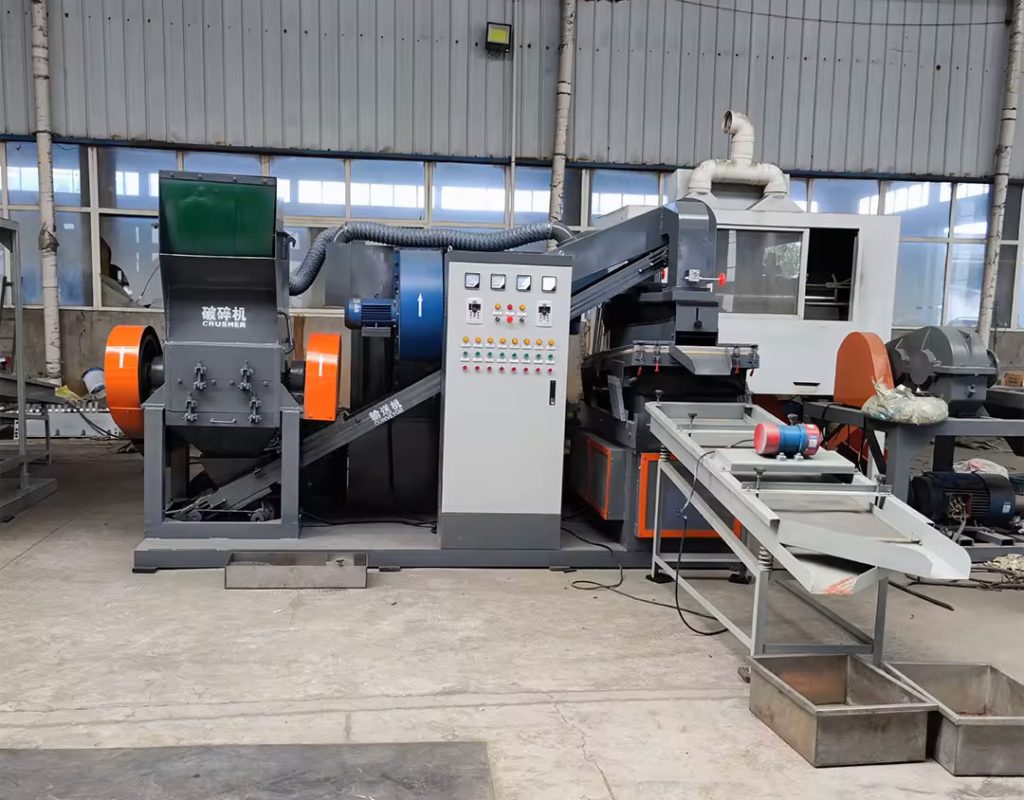

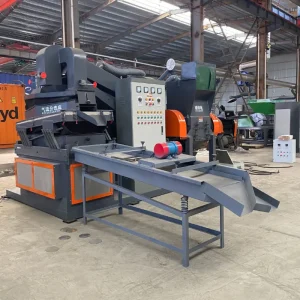

Machine main structure includes main crusher machine, conveyor, separator, dust collection system, electric box, water cooling system with compact design.

1. Primary crushing system
   • 1. Performance: automatic transmission of waste wire raw materials
   • 2. Applicable scope of raw materials: all waste electric wires below 25mm
   • 3. Safety switch: automatic shutdown in case of emergency (automatic shutdown in case of external force)
2. Conveyor belt section
   • 1. Performance: transfer the raw materials of primary crushing to the secondary grinder
   • 2. Separation: automatic adsorption of iron particles in raw materials
   • 3. Transmission mode: special motor is selected to integrate the conveyor belt and power motor
3. Secondary crushing system
   • 1. Performance: device for secondary crushing of raw materials
   • 2. Structure: select special bearing and special material blade
   • 3. Cooling device: use automatic cooling system to prevent the wire sheath (PVC) from solidifying
4. Control system
   • 1. Device: PLC computer control system
   • 2. Performance: control and coordinate the operation of each system
   • 3. Safety: automatic shutdown during overload operation and automatic resumption of production when overload is removed

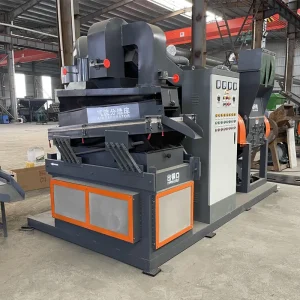

5. Automatic classification system
   • 1. Performance: automatic classification of copper and wire sheath (PVC)
   • 2. Separation: secondary automatic adsorption of iron particles

Product features:

1. After the waste wire and cable is crushed and processed, the fully automatic mechanical separation can completely separate the copper and the plastic, and achieve the comprehensive utilization purpose, which has high economic benefits.
2. And no dust and no secondary pollution. In addition, the device is an integrated modular structure, which is easy to install and debug, and transported (After the customer purchases, the production can start after the power is turned on.), and the performance is stable.
3. The feature of this machine is that the size limit can be broken and separated at the same time without classification. The structure is new and unique, the production volume is large, and the power consumption is small. The sorting rate is high, one feeding, and multi-machine cooperation is completed.
4. The whole line is controlled by PLC.

Applicable cable type

Wire and cable copper rice machine for recycling of all kinds of car electric line, motorcycle line, battery car line, television, washing machine, refrigerator, air conditioner and other household appliances line, communication line, computer line and other waste wire processing machine copper rice separation. Machine overall structure, the customer can produce electricity. Automatic crushing, feeding, vacuuming, separation. Only one person feeding can be sold, advanced dust collection device, dry separation, separated products can be directly sold, currently engaged in the waste wire and cable recycling industry most of the use of this equipment.
