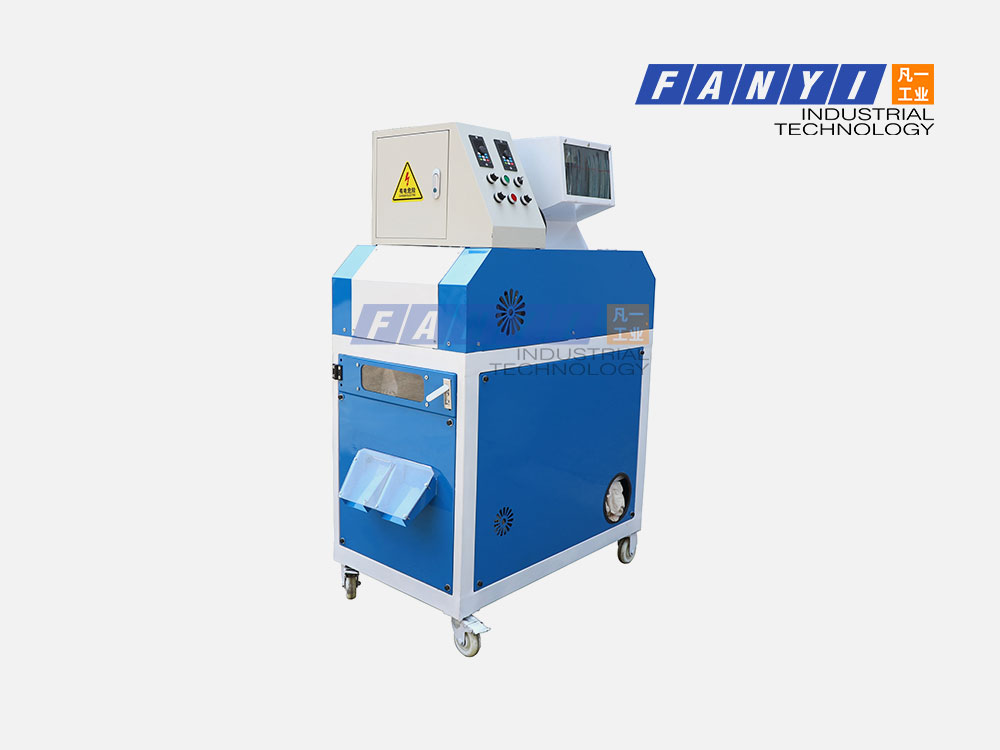

Small wire and cable recycling machine

This small copper wire granulating machine is almost the cheapest copper wire recycling machine you can buy in the market, but it has all the functions of crushing and sorting. The best choice for small waste wire recycling stations, as well as start-up recycling companies.

CATEGORY: Copper wire granulators

DESCRIPTION

---

---

Copper wire granulator machine is design for home and factory use, also benefits for scrapyard.
If you are looking for a machine with high capacity 100-180 kg/h ,small footprint and easy operate, copper wire separating machine is the best choice for you.
Copper wire granulator machine can process all kinds of cable below 30mm like household cables, square wires, industrial cable, electrical wire, car wire, communication cable and so on. Best price for biggest profit. very good choice for your business and wholesale.

Copper wire separating machine process:

• 1. Put the cables into feeding hole,the robust & powerful copper wire grinder crush cables into mixed granules.
• 2. Air flow gravity sorting system separate copper and plastic from mixed granules after crushing.
• 3. Vibration separator table doing secondary separation for pure copper.
• 4. At the same time Self-cleaning dust collection system collecting dust.

copper wire separating machine advantage:

• 1. The high processing capacity copper wire recycling machine;
• 2. Supports household electricity(single phase & three phase electricity );
• 3. Compact mini size and high capacity, the capacity is about 100-180kg per hour;
• 4. Cheapest and affordable, suitable for wholesale;
• 5. Also can be operated by one person, saving labor costs.

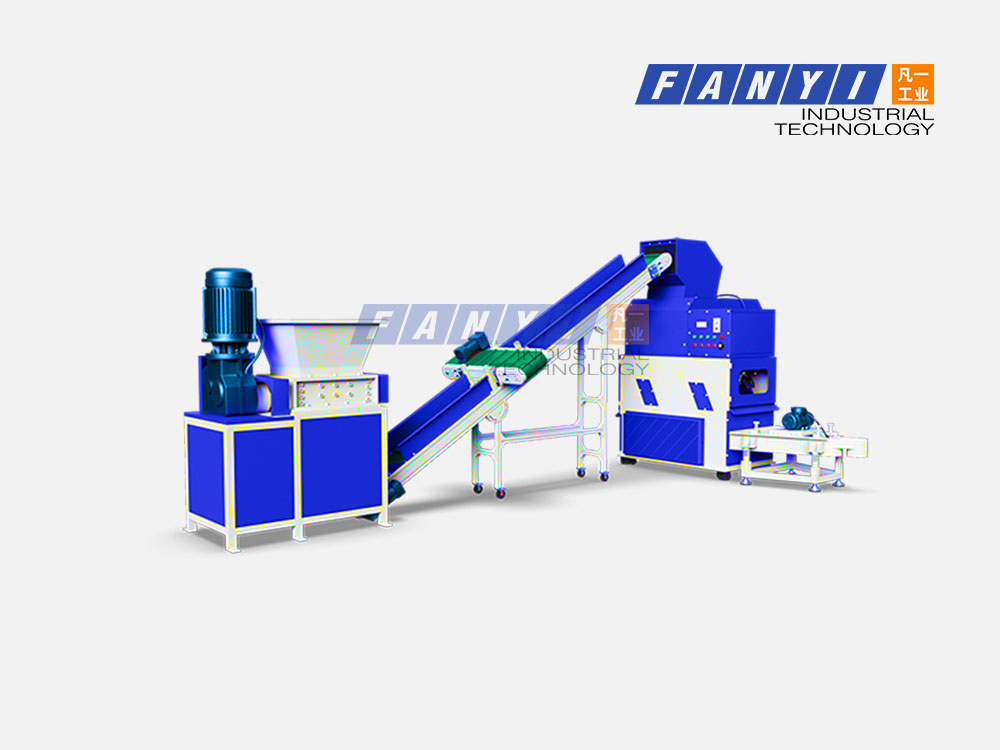

• 6. configurable parts double shaft shredder & single shaft shredder, which can further increase the processing capacity.

Product Parameters：

Processing range (copper wire diameter): 0.1-25mm
Output: 50-100kg/h
Machine weight: 400kg
Power: 5KW
Voltage (customizable): 110V/220V/380V
Dimensions: 12005801500mm
Feed port size: 300*200mm
Number of tools: 5 PCS
Tool material: high carbon high chromium die steel
Dust treatment: bag dust collector
